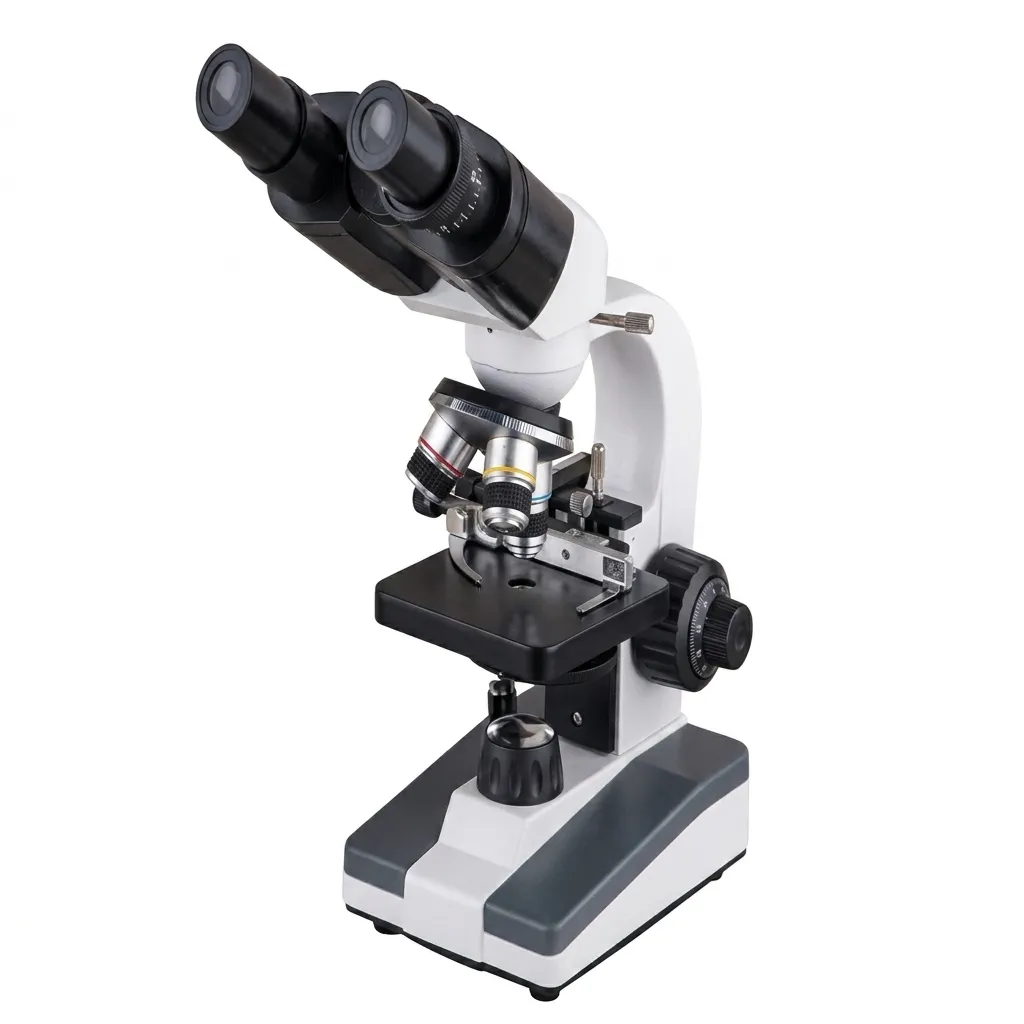

XSP-116B Professional Binocular Biological Microscope

Description

The XSP-116B is a high-performance laboratory microscope designed for medical, clinical, and advanced educational applications. It offers a significant ergonomic upgrade over monocular models, providing a comfortable, dual-eye viewing experience that reduces eye strain during long hours of observation. This model is a staple in diagnostic labs and universities due to its reliable optics and smooth mechanical precision.

Key Features & Benefits

1. Ergonomic Binocular Head

The XSP-116B features a 360° rotatable binocular head inclined at a comfortable 30° or 45°. It includes interpupillary distance adjustment and diopter control, allowing the user to customize the focus for their specific vision.

2. Precision Mechanical Stage

Unlike basic models, the 116B is equipped with a large double-layer mechanical stage. The coaxial low-position controls allow for precise $X-Y$ movement of the slide, making it easy to scan specimens at high magnifications without manual repositioning.

3. Quadruple Revolving Nosepiece

The outward-facing nosepiece holds four Achromatic Objectives (4X, 10X, 40X, and 100X Oil). This allows for a wide range of magnification, from sweeping tissue surveys to high-detail cellular analysis.

4. Advanced Illumination & Focus

The system features a coaxial coarse and fine focusing mechanism for pinpoint sharpness. Lighting is provided by a high-intensity LED or Halogen system, regulated by an Abbe N.A. 1.25 condenser with an iris diaphragm, ensuring optimal contrast and light control.

Technical Specifications

Product Size & Weight

• Product Height: Approx. 360 mm (14.1″)

• Base Dimensions: 210 mm x 160 mm (8.2″ x 6.3″)

• Net Weight: Approx. 4.0 kg to 5.0 kg (8.8 lbs to 11 lbs)

• Packaging: Securely packed in a high-density foam (Styrofoam) box inside a thick cardboard carton.

Ideal Applications

• Clinical Diagnostics: Routine blood, urine, and fecal analysis.

• Advanced Education: College and University biology and pathology labs.

• Microbiology: Observation of bacteria, fungi, and protozoa.

• Veterinary Use: Diagnostic testing for small animal clinics.
