Description

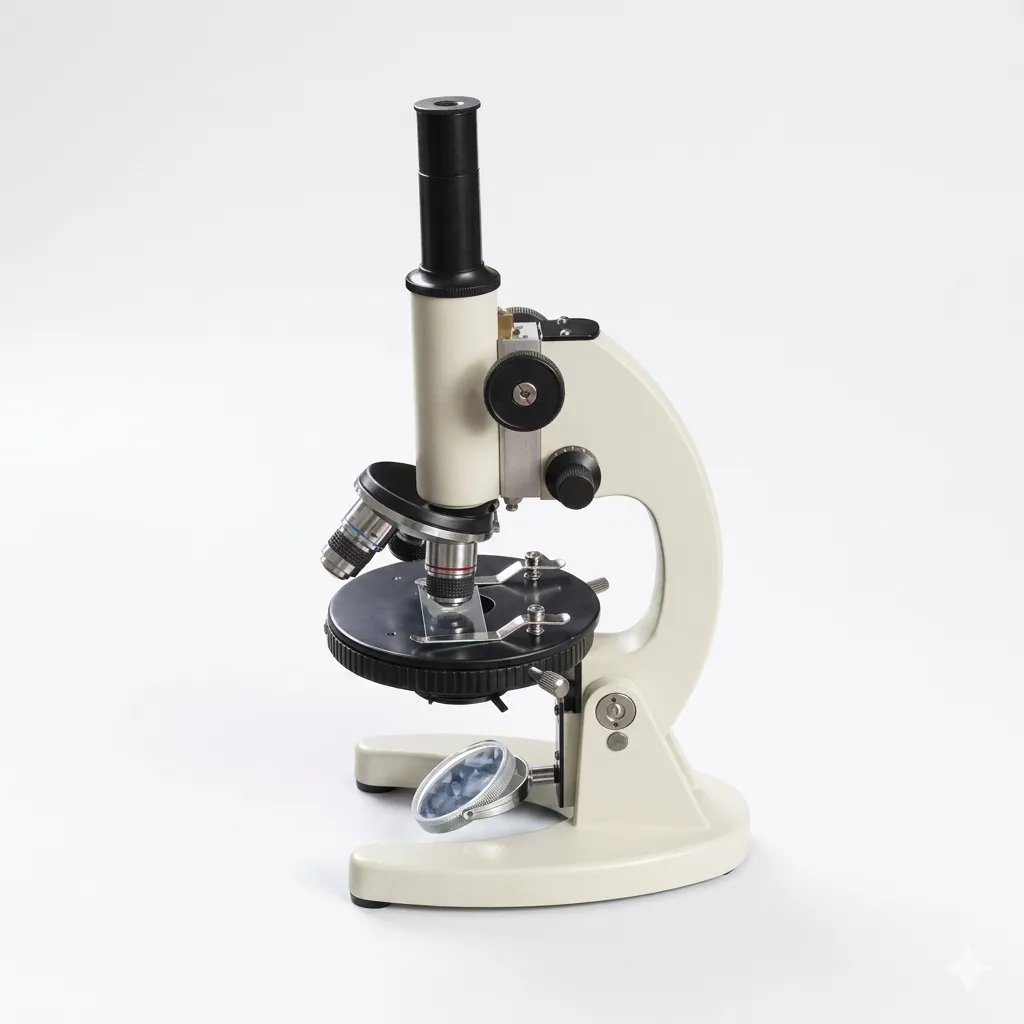

The L-101 Student Microscope is one of the most widely used educational instruments across schools and junior colleges in India. Featuring a classic, durable design with a circular (round) stage, it is specifically engineered to introduce students to the world of microscopy. This model is known for its simplicity, ease of maintenance, and robust “India-Type” cast iron construction.
Key Features & Benefits
1. Classic Round Stage Design
Unlike square stages found on medical models, the round stage (typically 110mm to 120mm in diameter) offers a traditional layout. It is equipped with two spring-loaded stage clips to secure slides firmly during observation.
2. Heavy-Duty “India-Type” Build
Constructed with a solid cast iron base and a finished aluminum body, the L-101 is designed to withstand the heavy-handed use typical of a classroom environment. Its tilting limb allows the user to incline the microscope up to 90° for comfortable viewing.
3. Precision Optics for Education
Equipped with high-quality achromatic objectives and wide-field eyepieces, this microscope provides clear, sharp images of biological specimens, plant cells, and microorganisms.
4. Protective Foam Packaging
This version comes securely housed in a custom-fit high-density foam (thermocol) casing. This ensures the delicate lenses and the mechanical body are protected from impact during transit and provides a convenient dust-free storage solution for the classroom.
Technical Specifications
| Component | Details |
| Catalog No | L-101 / Junior Student Model |
| Product Type | Educational Optical Instrument |
| Body Type | Monocular, Inclined up to 90° |
| Stage | Fixed Round Stage (110mm Diameter) with Clips |
| Nosepiece | Triple Revolving Nosepiece with Click Stops |
| Objectives | Achromatic 10X and 45X (Spring Action) |
| Eyepieces | Huygenian 10X and 15X |
| Focusing | Separate Coarse and Fine Adjustment Knobs |
| Illumination | Plan-concave Mirror (50mm) for Natural Light |
| Condenser | Fixed Under-stage Iris Diaphragm |
| Packaging | High-Density Foam / Styrofoam Box |
Ideal Applications
-
Secondary Schools: General science and biology practicals.
-
Hobbyists: Basic observation of pond water, insects, and botanical samples.
-
Medical Training: Entry-level training for nursing and paramedical students.
Product Size & Weight
-
Height: Approx. 300 mm (11.8″)
-
Base Dimensions: 150 mm x 120 mm (5.9″ x 4.7″)
-
Net Weight: Approx. 2.5 kg to 3.0 kg (5.5 lbs to 6.6 lbs)
-
Shipping Volume: Fits within a compact 350 x 200 x 180 mm foam-lined carton.
