Vertical Electrophoresis

Description

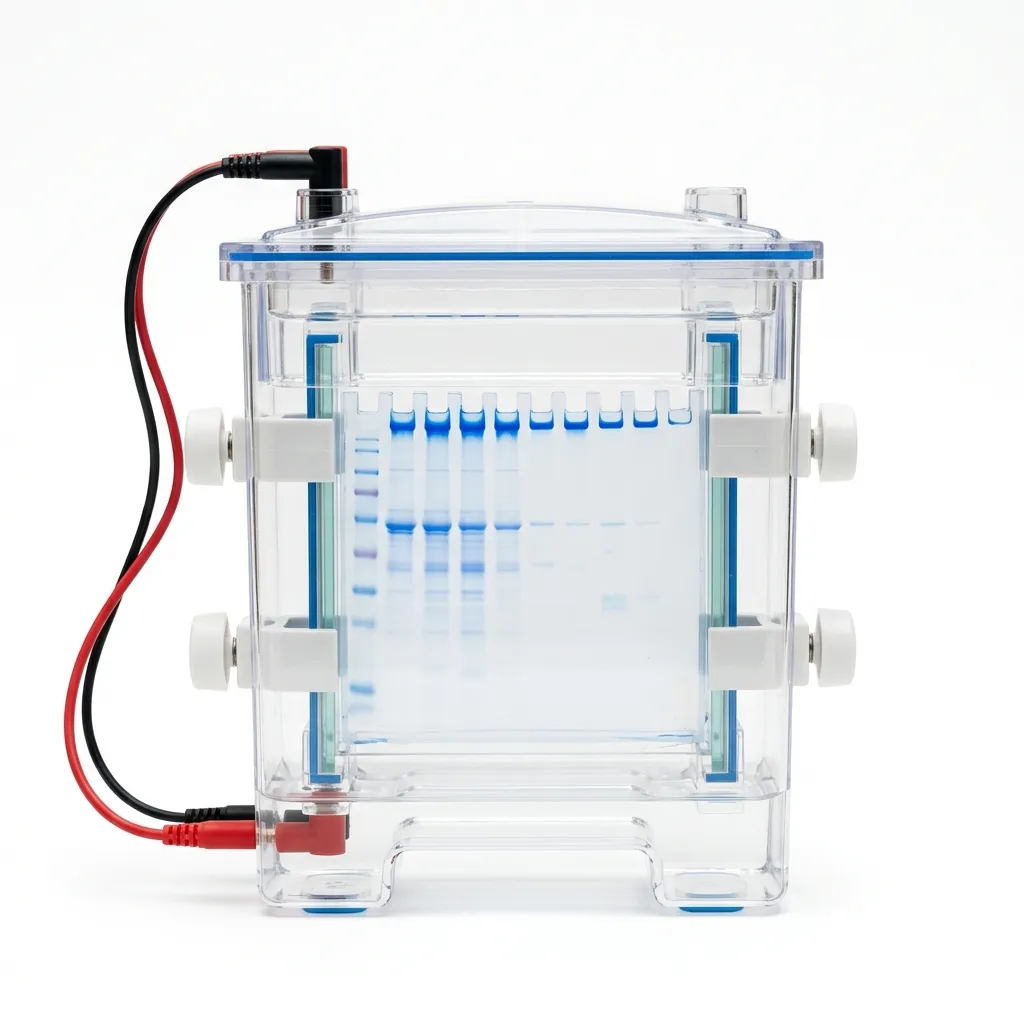

Professional Vertical Electrophoresis Cell (Protein Polyacrylamide Gel System)

The Professional Vertical Electrophoresis Cell is a high-performance laboratory apparatus engineered for the rapid separation and analysis of protein molecules, nucleic acids, and small DNA fragments. Universally utilized in biochemistry, molecular biology, and proteomics laboratories, this unit is highly optimized for running polyacrylamide gel electrophoresis (PAGE, SDS-PAGE, and native PAGE) as well as two-dimensional (2D) electrophoresis setups with exceptional band resolution and reproducibility.

Key Features & Benefits

1. Leak-Free Casting & Rapid Run Environment

Featuring a precision-molded glass plate system with integrated permanent spacers, the apparatus guarantees a perfect, leak-free seal during gel casting. The advanced core structure ensures uniform pressure distribution along the entire length of the gel, preventing sample bypass or uneven front running lanes.

2. Efficient Buffer-Mediated Cooling Design

The dual-vertical configuration relies on an inner core design where the inner buffer chamber is completely surrounded by the outer running buffer. This large thermal mass acts as an integrated heat sink, dissipating heat generated by high electrical currents to eliminate smiling effects and thermal band distortion.

3. Safe-Lock Shrouded Power System

Engineered with absolute operator safety in mind, the cell includes an integrated safety lid with attached, recessed power leads. The electrical circuit can only be completed when the lid is securely oriented onto the cell body, protecting laboratory personnel from accidental high-voltage electrical shocks.

4. Unobstructed High-Clarity Chamber Construction

The main tank housing is injection-molded from high-transparency, chemically resistant polycarbonate. This rugged, seamless design prevents buffer leakage, allows clear, unhindered observation of the tracking dye migrating down the gel lanes, and easily withstands long-term routine laboratory use.

Technical Specifications

Specification	Details
Gel Throughput Capacity	1 to 4 Handcast or Precast Gels simultaneously
Glass Plate Dimensions (W x H)	Approx. 100 mm x 80 mm (Short) / 100 mm x 102 mm (Spacer)
Total Buffer Capacity	700 mL to 1000 mL (Depending on the number of active gels)
Comb Configurations	5, 9, 10, or 15-well sample combs available (Various thicknesses)
Tank Core Material	High-Transparency, Impact-Resistant Polycarbonate
Electrical Connectors	2 mm standard safety banana plugs with platinum electrodes
Safety Certification	Lid-activated electrical power disconnect

Product Size & Weight (Standard Mini Configuration)

Active Running Area: Handles up to 4 standard mini gels simultaneously
External Overall Dimensions (W x H x D): Approx. 120 mm x 160 mm x 140 mm (4.7″ x 6.3″ x 5.5″)
Net Weight (NW): Approx. 1.2 kg (2.6 lbs) including casting modules and glass trays
Gross Weight (GW): Approx. 2.0 kg (4.4 lbs) shipped inside a padded, foam-lined transport carton to prevent glass plate breakage.

Ideal Applications

Proteomics & Biochemistry: Routine separation and molecular weight estimation of complex protein mixtures via SDS-PAGE.
Immunology & Clinical Pathology: Preparing protein profiles for Western Blotting transfers, peptide mapping, and purity assessments.
Nucleic Acid Analysis: Screening small DNA/RNA fragments, oligonucleotides, and high-resolution mismatch polymerase chain reaction (PCR) products.
Academic Training: Supporting hands-on laboratory courses in life science, genetics, and structural biology programs.
