Description
The MW151 MAX is an advanced, microprocessor-based benchtop meter designed for laboratories that require high-precision measurements combined with comprehensive data logging capabilities. This instrument is the ideal upgrade for professionals who need to document their results for compliance, research, or quality control.
Key Features & Benefits
1. Comprehensive Data Logging & USB Connectivity
Unlike standard benchtop meters, the MW151 features a built-in logging function.
-
Log-on-demand: Save up to 5000 data samples.
-
Data Export: Easily transfer your readings to a PC via the optically isolated USB port, ensuring your records are organized and accessible.
2. Precision Calibration & High Resolution
Achieve pinpoint accuracy with refined control over your testing parameters:
-
Extended pH Range: -2.00 to 16.00 pH with 0.01 resolution.
-
Multi-Point Calibration: Up to 3-point automatic calibration with 7 standard buffers for maximum linearity.
3. Enhanced ORP Measurement
The MW151 provides reliable Redox (ORP) tracking, essential for monitoring disinfection processes or chemical reactions, with a range up to ±1999 mV.
4. Built-in GLP (Good Laboratory Practice)
Maintain professional standards with the dedicated GLP key. This feature allows users to recall calibration data, including date, time, and buffer values, ensuring the integrity of every measurement taken.
5. User-Centric Interface
The large, intuitive LCD provides simultaneous pH/ORP and temperature readings. With clear alphanumeric prompts and a stable benchtop footprint, it simplifies complex lab workflows.
Technical Specifications
| Feature | Details |
| pH Range | -2.00 to 16.00 pH |
| mV Range | ±699.9 mV / ±1999 mV |
| Temp Range | -20.0 to 120.0°C (-4.0 to 248.0°F) |
| Logging Memory | Up to 5,000 samples |
| Connectivity | USB Port (Optically Isolated) |
| Compensation | Automatic Temperature Compensation (ATC) |
Applications
The Milwaukee MW151 is a versatile powerhouse suitable for a variety of industries:
-
Water Treatment: Accurate monitoring of pH and Redox potential.
-
Food & Beverage: Ensuring consistency in acidity and shelf-life stability.
-
Education & Research: Reliable data logging for long-term experiments.
-
Pharmaceuticals: Meeting GLP requirements for data tracking and calibration history.

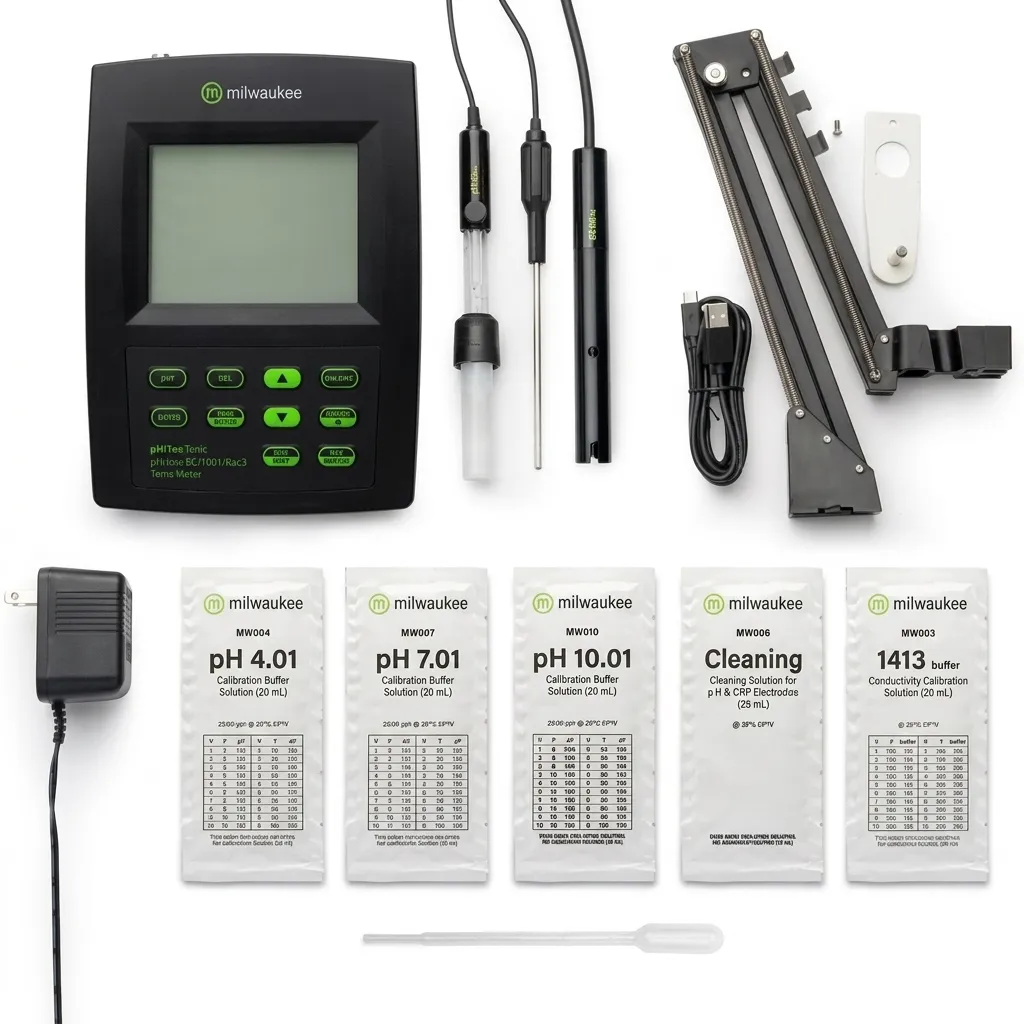

Included in the Package:
-
MW151 Benchtop Logging Meter
-
MA917B/1 Double Junction Glass pH Electrode
-
MA831R Temperature Probe
-
MA9315 Adjustable Electrode Holder
-
USB Cable & Power Adapter
-
pH 4.01, 7.01, 10.01 Buffer Solution Sachets
